Onsemi NVMFWS系列汽車級低/中壓MOSFET

發布時間：2025-12-08 09:34:37     瀏覽：75

　　NVMFWS系列是onsemi推出的高性能汽車級MOSFET，專為高效率、高可靠性應用設計。采用先進的PowerTrench?技術，提供超低導通電阻(最低0.52mΩ)和高電流承載能力(最高414A)，適用于電動汽車、工業電機控制、電池管理和電源轉換等關鍵應用。

Onsemi NVMFWS系列汽車級低/中壓MOSFET

　　核心優勢

　　? 超高效率：0.52mΩ超低RDS(ON)，大幅降低導通損耗

　　? 緊湊設計：5×6mm2 SO-8FL封裝，節省PCB空間

　　? 汽車級可靠性：AEC-Q101認證，支持PPAP

　　? 環保合規：RoHS、無鹵素，符合全球環保標準

　　? 高速開關：低柵極電荷(Qg)和電容，優化高頻應用

　　典型應用

　　新能源汽車：電機驅動、OBC、DC-DC轉換

　　工業自動化：伺服電機、機器人關節控制

　　電池管理：BMS保護、充放電控制

　　電源系統：同步整流、服務器電源

型號參數：

Product GroupV(BR)DSS Min (V)RDS(on) Max @ VGS = 10 V  (mΩ)Vgs (V)Vgs(th) Max (V)ID Max (A)PD Max (W)Package Type
NVMFWS005N10MCLT1G100,5.1,20,3,108,131,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS014P04M8LT1G-40,13.8,20,-2.4,-52.1,60,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS015N10MCLT1G100,12.2,±202.2,47.1,79,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS016N06CT1G60,15.6,±204,33,36,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS016N10MCLT1G100,14,20,3,46,64,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS020N06CT1G60,19.6,±20  4,28,31,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS021N10MCLT1G100,23,20,3,31,49,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS024N06CT1G60,22,±20  4,25,28,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS025P04M8LT1G-40,23,20,-2.4,-34.6,44.1,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS027N10MCLT1G100,26,20,3,28,46,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS040N10MCLT1G100,38,20,3,21,36,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS2D3P04M8LT1G-40,2.2,20,-2.4,-222,205,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS3D0P04M8LT1G-40,2.7,20,-2.4,-183,171,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS3D6N10MCLT1G100,3.6,±20  2.2,131,136,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS9D6P04M8LT1G-40,9.5,20,-2.4,-77,75,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS002N10MCLT1G100,2.8,20,4,177,194,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS003N10MCT1G100,3.1,20,4,169,3.8,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS004N04XMT1G40,4.7,20,3.5,65,38,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS004N10MCT1G100,3.9,20,4,138,164,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS014N08XT1G80,13.8,20,3.6,35,35,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS0D45N04XMT1G40,0.45,20,2.96,517,180,DFNW5 5x6, FULL鈭扖UT SO8FL WF
NVMFWS0D4N04XMT1G40,0.42,20,3.5,509,197,DFNW5 5x6, FULL鈭扖UT SO8FL WF
NVMFWS0D5N04XMT1G40,0.52,20,3.5,414,163,DFNW5 5x6, FULL鈭扖UT SO8FL WF
NVMFWS0D63N04XMT1G40,0.6,20,3.5,344,157,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS0D6N04XMT1G40,0.57,20,3.5,380,150,DFNW5 5x6, FULL鈭扖UT SO8FL WF
NVMFWS0D7N04XMT1G40,0.7,20,3.5,323,134,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS0D9N04XMT1G40,0.9,20,3.5,273,121,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS1D1N04XMT1G40,1.05,20,3.5,233,104,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS1D3N04XMT1G40,1.3,20,3.5,195,90,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS1D5N08XT1G80,1.5,20,2.63,505,857,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS1D7N04XMT1G40,1.65,20,3.5,154,75,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS1D9N08XT1G80,1.9,20,3.6,201,164,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS2D1N08XT1G80,2.1,20,3.6,181,148,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS2D3N04XMT1G40,2.35,20,3.5,121,63,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS2D5N08XT1G80,2.5,20,3.6,156,133,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS2D9N04XMT1G40,3.1,20,3.5,94,50,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS3D0N08XT1G80,3,20,3.6,144,133,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS3D5N08XT1G80,3.5,20,3.6,119,107,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS4D0N04XMT1G40,3.9,20,3,80,43,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS4D5N08XT1G80,4.5,20,3.6,90,78,DFNW5 4.90x5.90x1.00, 1.27P
NVMFWS6D2N08XT1G80,6.2,20,3.6,71,68,DFNW5 4.90x5.90x1.00, 1.27P

深圳市立維創展科技有限公司優勢提供Onsemi的MOSFETs、AC-DC/DC-DC電源轉換器模塊及碳化硅(SiC)產品，歡迎咨詢了解。

推薦資訊

  • NXP T2081系列多核通信處理器
    NXP T2081系列多核通信處理器 2025-08-07 08:45:09

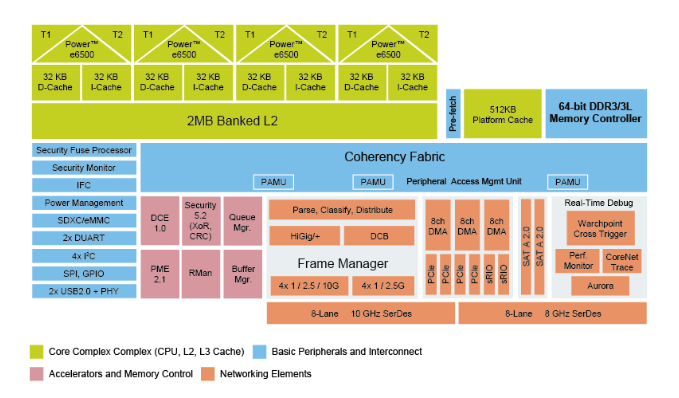

    QorIQ T2081是一款基于Power Architecture?技術的多核通信處理器，搭載4個雙線程e6500核心、2MB共享二級緩存及32KB指令/數據緩存，支持DDR3/DDR3L內存和多種高速接口（如10G以太網、PCIe 3.0、USB 2.0），通過DPAA架構實現數據包處理加速，具備安全啟動和動態電源管理功能，廣泛應用于網絡設備、無線基站及軍事領域。
